Product Description

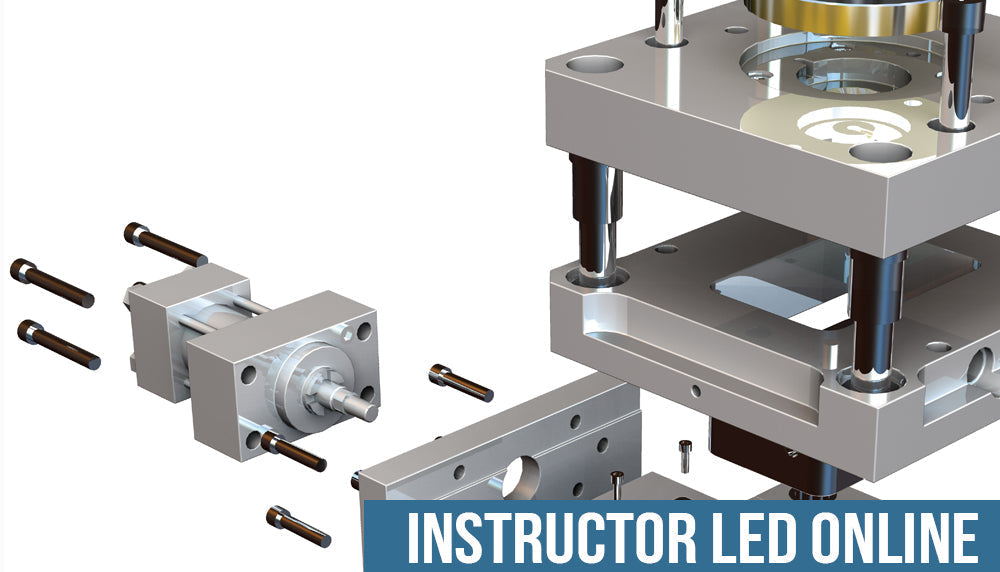

Mold Design Using SOLIDWORKS teaches you several manual mold creation techniques and how to use the Mold Tools in SOLIDWORKS mechanical design automation software.

Course Length: 4 days
A BLOCK - 8am-11am CT
B BLOCK - 12pm-3pm CT
C BLOCK - 4pm-7pm CT

Have questions? Click Here for Training FAQ

Prerequisites: We recommend completing the SOLIDWORKS Advanced Part Modeling course.

Topics Covered in This Course:

• Surface Concepts and Imported Geometry
• Core and Cavity
• Side Cores and Pins
• Advanced Parting Line Options
• Creating Custom Surfaces for Mold Design
• Advanced Surfacing for Mold Design
• Alternative Methods for Mold Design
• Reusable Data
• Completing the Mold Base
