Product Description

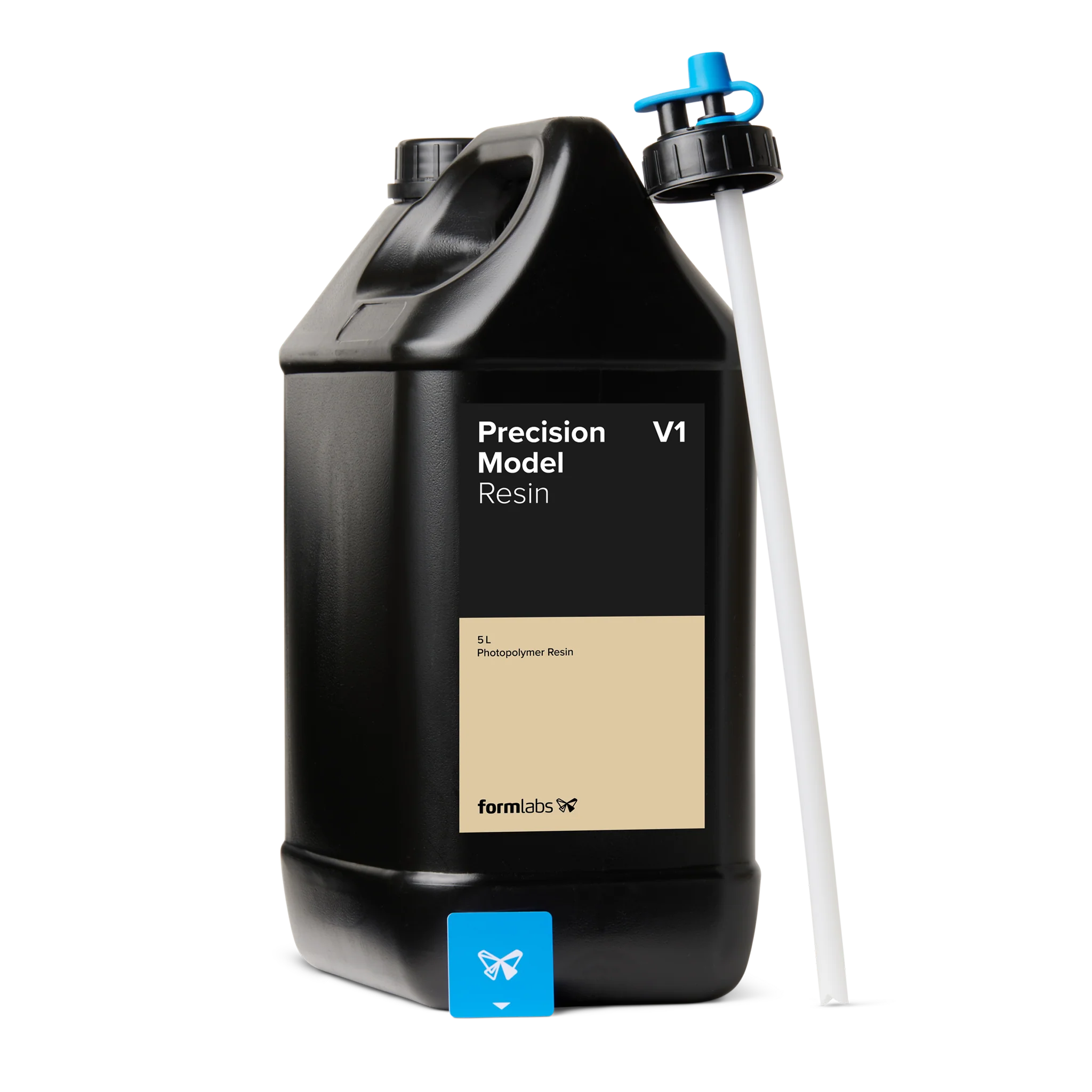

If accuracy is your priority, look no further than Precision Model Dental Resin. This material is the perfect choice for professionals who need rapid, consistent, and dimensionally-correct results. This resin creates restorative models with >99% of printed surface area within 100 μm of the digital model, while the opaque beige tone and smooth matte finish make margin lines and fine features easy to see. Plus, it's fast, allowing you to print models in as little as 90 minutes. Precision Model Resin for 3D printing is available in both 1-liter and 5-liter volumes and is compatible with Formlabs Form 4B and Form 4BL SLA printers.

Features:

• Create incredibly high-accuracy models
• Gypsum-like appearance for easy visualization
• Prints in as little as 90 minutes

Resin Color: Matte Beige

Mechanical Properties:

• Ultimate Tensile Strength: 50 MPa (7,190 psi)
• Tensile Modulus: 2.2 GPa (326 ksi)
• Elongation at Break: 8.60%
• Flexural Strength: 87 MPa (12,618 psi)
• Flexural Modulus: 2.3 GPa (334 ksi)
• Notched Izod: 32 J/m (0.59 ft-lb/in)
• Unnotched Izod: 262 J/m (4.9 ft-lb/in)
• Heat Deflection Temp. @ 0.45 MPa: 53.5°C (128.3°F)
• Heat Deflection Temp. @ 1.8 MPa: 46.3°C (115.3°F)
• Thermal Expansion: 81.1 μm/m/°C (45.1 μin/in/°F)

Possible Applications:

Dental

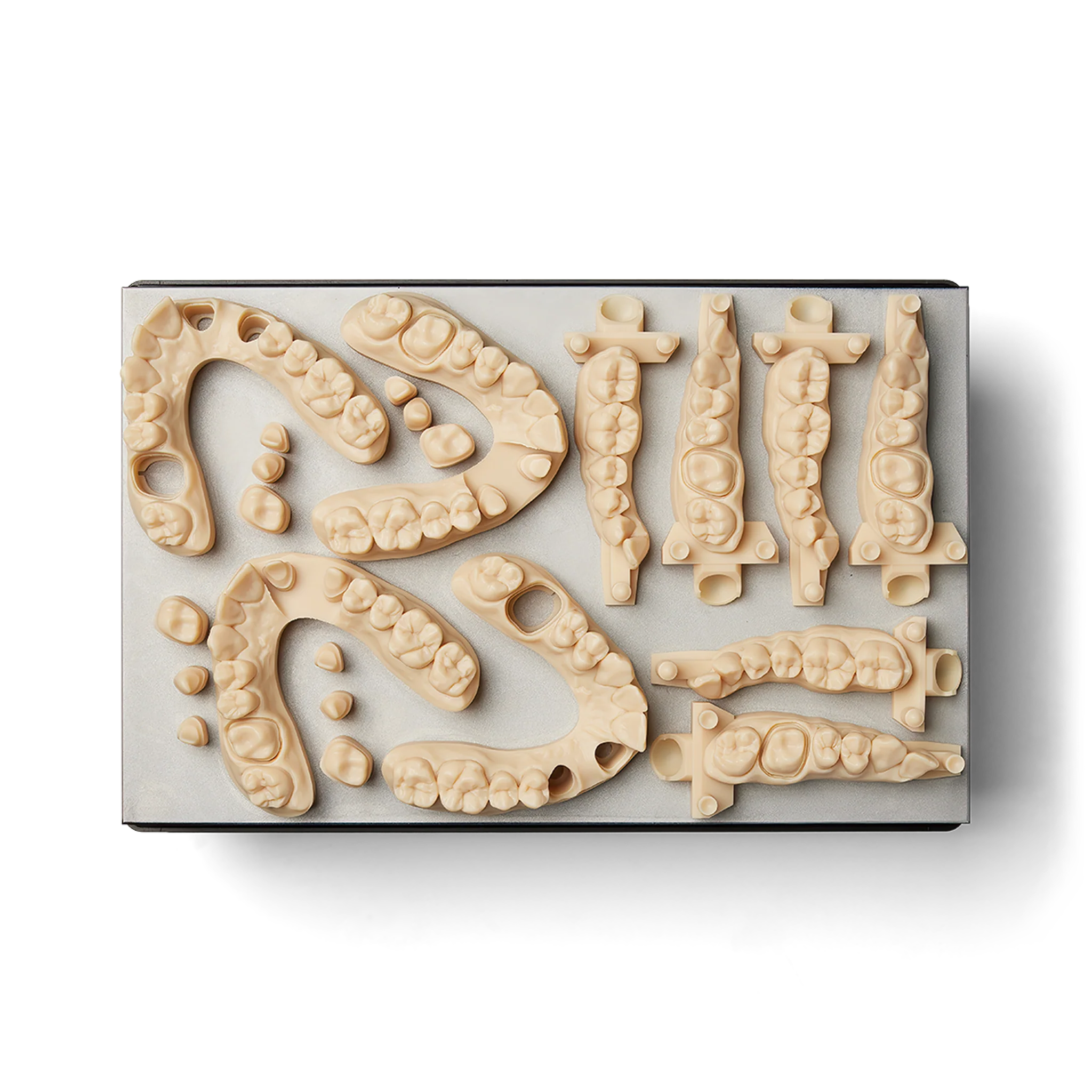

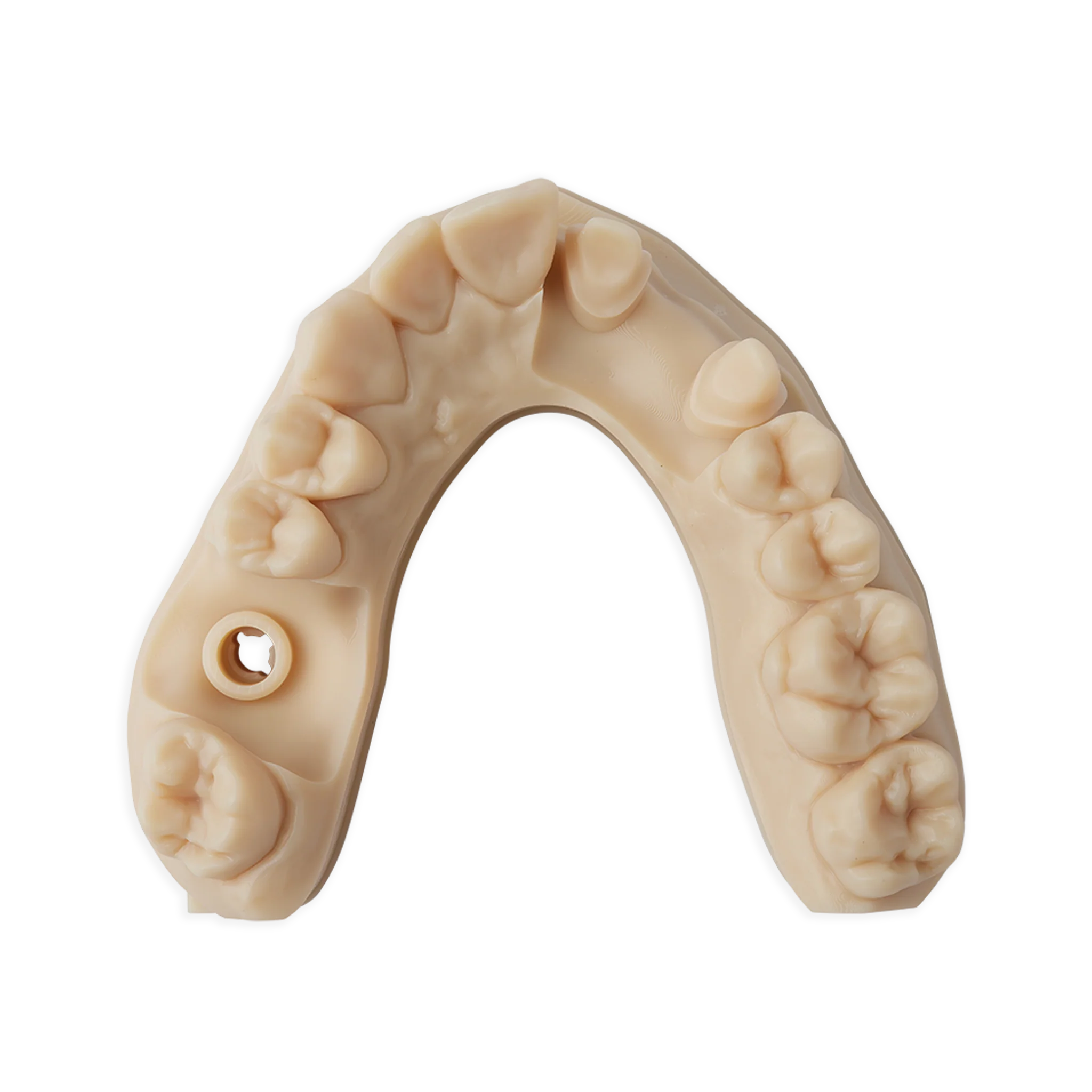

• Restorative Models
• Implant Models
• Crown Fit Test Models
• Removable Die Models

Compatible 3D Printers:

• Form 4B 3D Printer
• Form 4BL 3D Printer

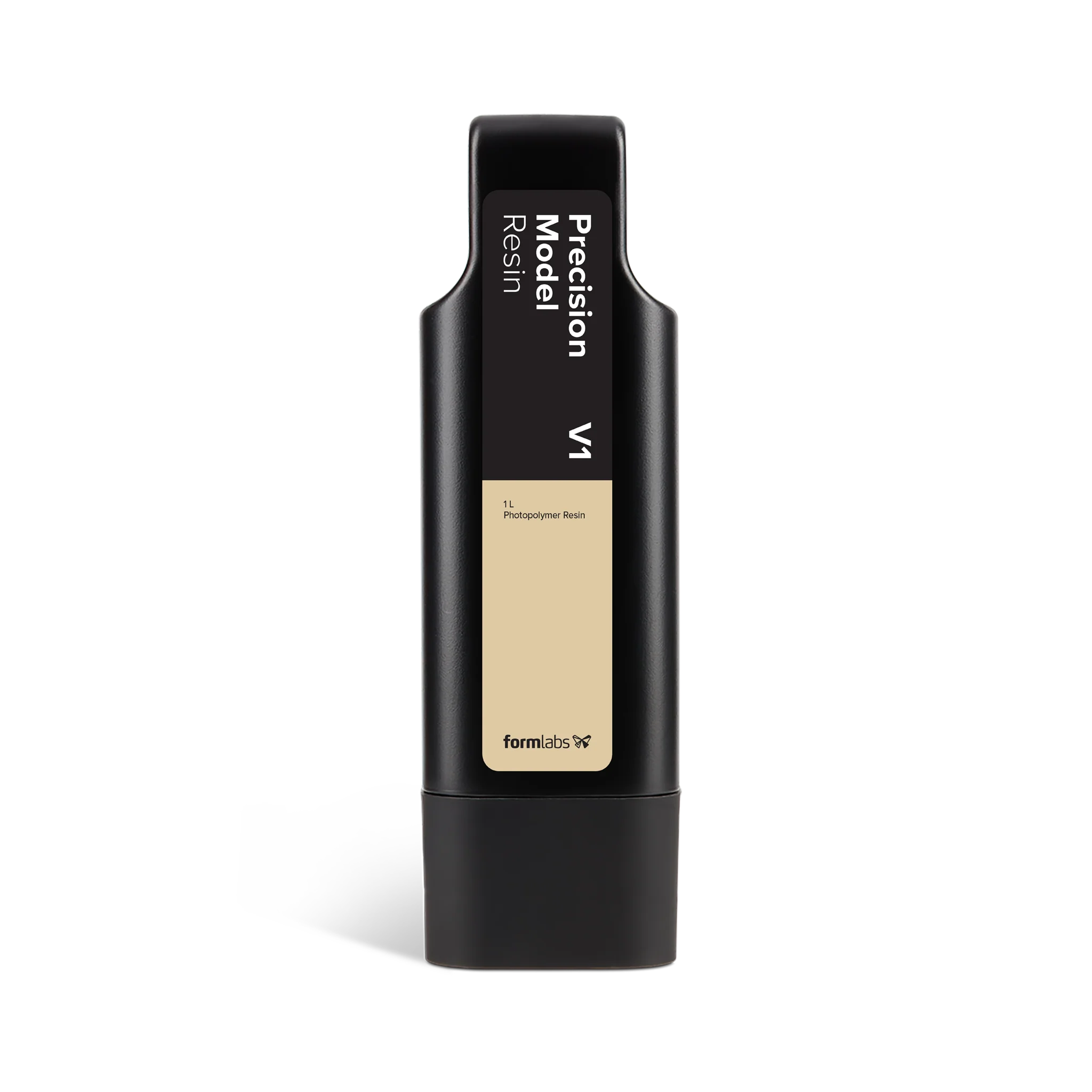

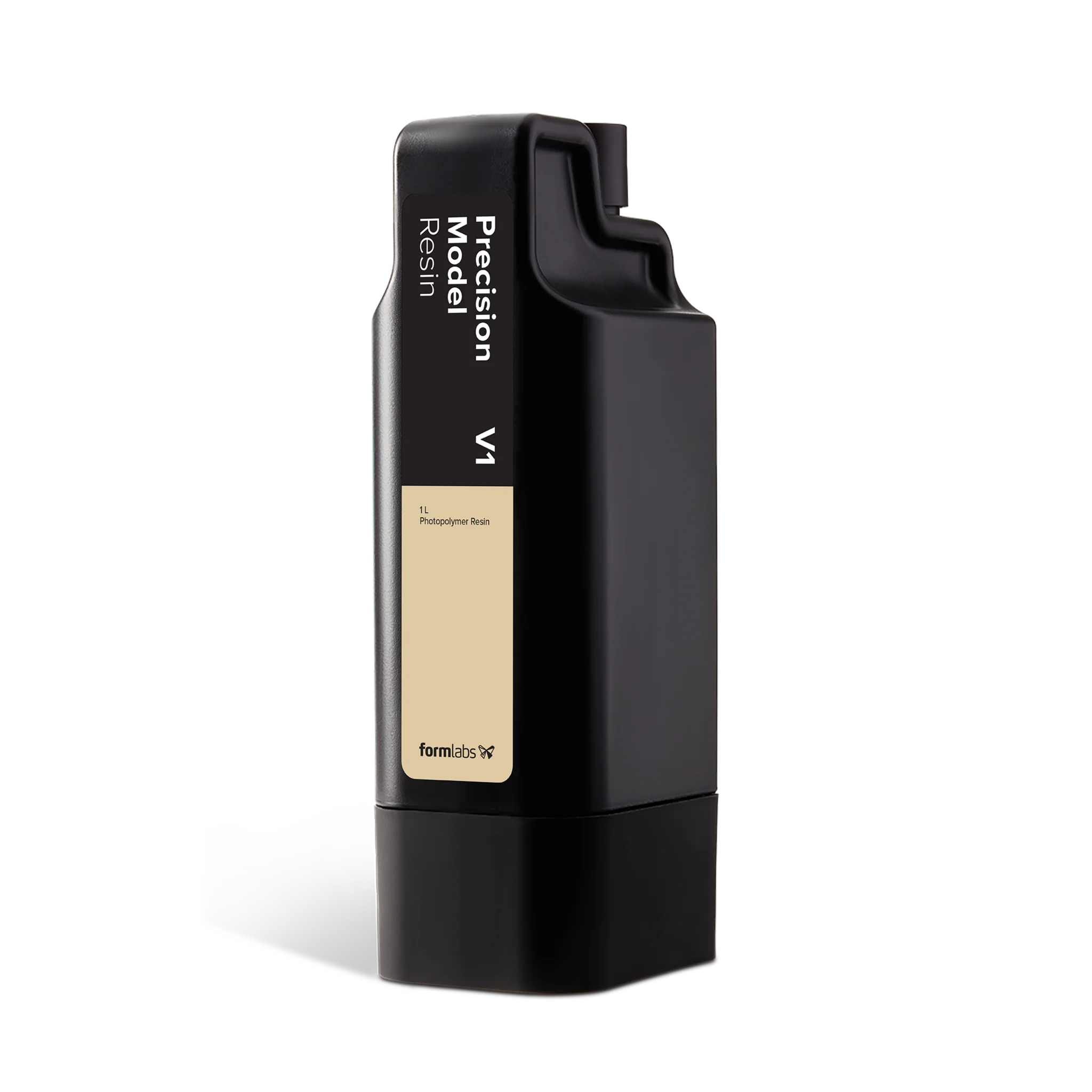

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download Precision Model Resin V1 Data Sheet
