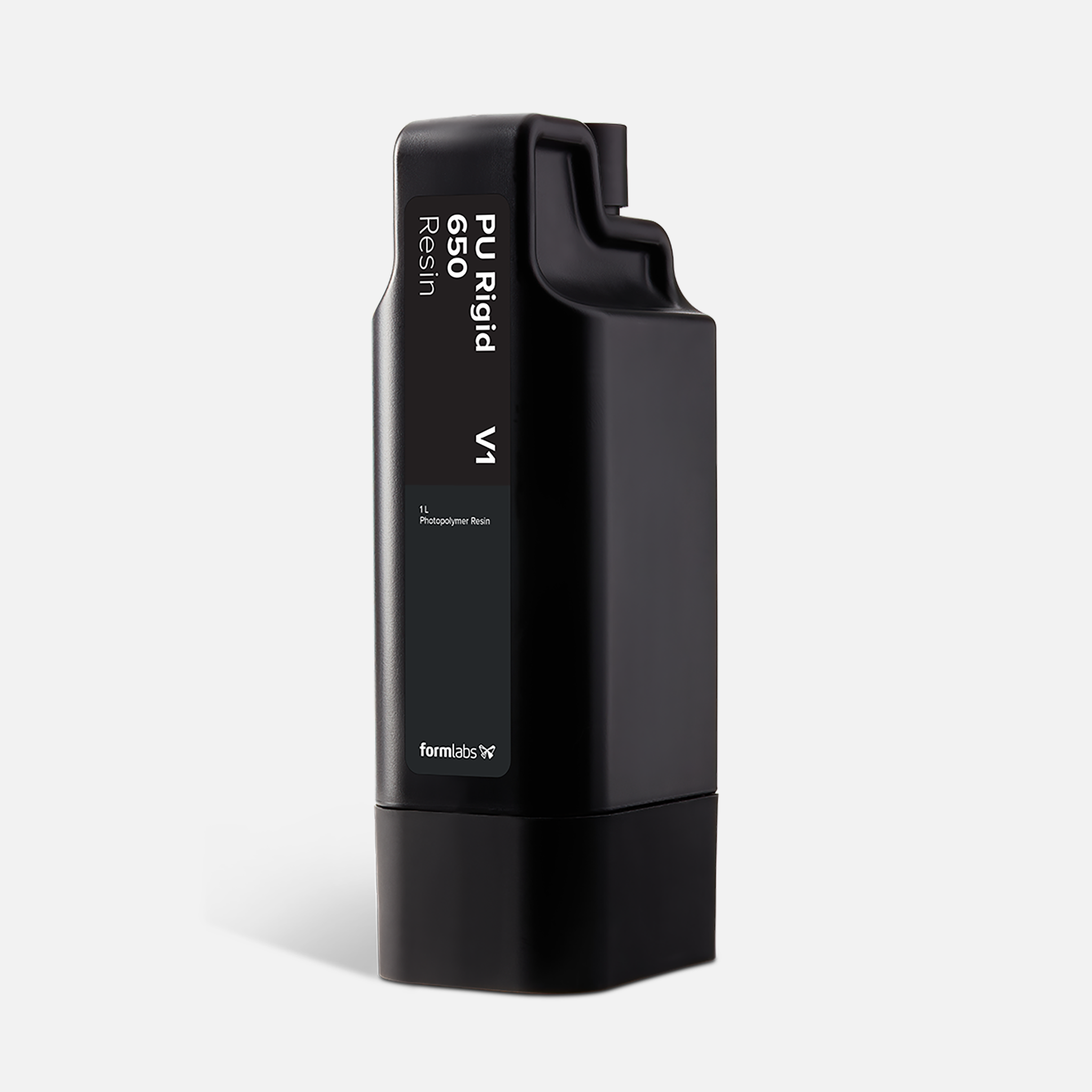

Formlabs™ PU Rigid 650 Resin V1 - 1L (Form 4, Form 3, Form 2)

Formlabs
14900
SKU: RS-C2-PU65-01

Compatible 3D Printers

Formlabs

SKU: RS-F2-PU65-01 SKU: RS-C2-PU65-01
• Form 2
• Form 3
• Form 3+
• Form 3B
• Form 3B+
• Form 3L
• Form 3BL
 • Form 4
• Form 4B
• Form 4L
• Form 4BL

Product Description

PU Rigid 650 Resin V1 is a pliable polyurethane material that maintains dimensional accuracy under stress. It is biocompatible and offers excellent strength and durability, making it ideal for shock-absorbing and noise-dampening components. This semi-stiff resin is available in a 1-liter volume and is compatible with several Formlabs SLA printers, including Form 2, Form 3, Form 3+, Form 3B, Form 3B+, Form 3L, Form 3BL, Form 4, Form 4B, Form 4L, and Form 4BL.

Resin Color: Black

Technical Data Sheet: Download PU Rigid 650 Resin V1 Data Sheet

Disclaimer: This material is for commercial and research use only. It is not for use in or around households, residences, recreational settings, or outside of a commercial or research facility or institution.

Please Note: that PU Rigid 650 Resin is a Form X material and requires additional equipment. This workflow is recommended for experienced users.

Need a more resilient polyurethane material that can withstand the most extreme levels of stress? Try the extra-stiff PU Rigid 1000 Resin V1.


Specs

Mechanical Properties:
  • Flex Cycles: >50,000
  • Ultimate Tensile Strength: 34 ± 3.4 MPa (4931.2 ± 493.1 psi)
  • Tensile Modulus: 67.0 ± 6.0 MPa (9717.5 ± 870.2 ppi)
  • Elongation at Break: 170 ± 17%
  • Flexural Strength: 22.0 ± 1.1 MPa (3190.8 ± 159.5 psi)
  • Flexural Modulus: 57.0 ± 3.0 MPa (8267.1 ± 435.1 psi)
  • Notched Izod: 375 J/m (7.03 ft-lb/in)
  • Heat Deflection Temp. at 0.45 MPa (65.2 psi): 82°C (179.6°F)
  • Heat Deflection Temp. at 1.8 MPa (261.0 psi): 59°C (138.2°F)

Possible Applications:

Engineering

  • Impact-resistant components
  • Pliable mechanical connectors
  • Shock-absorbing bumpers and dampeners
  • Noise-dampening components

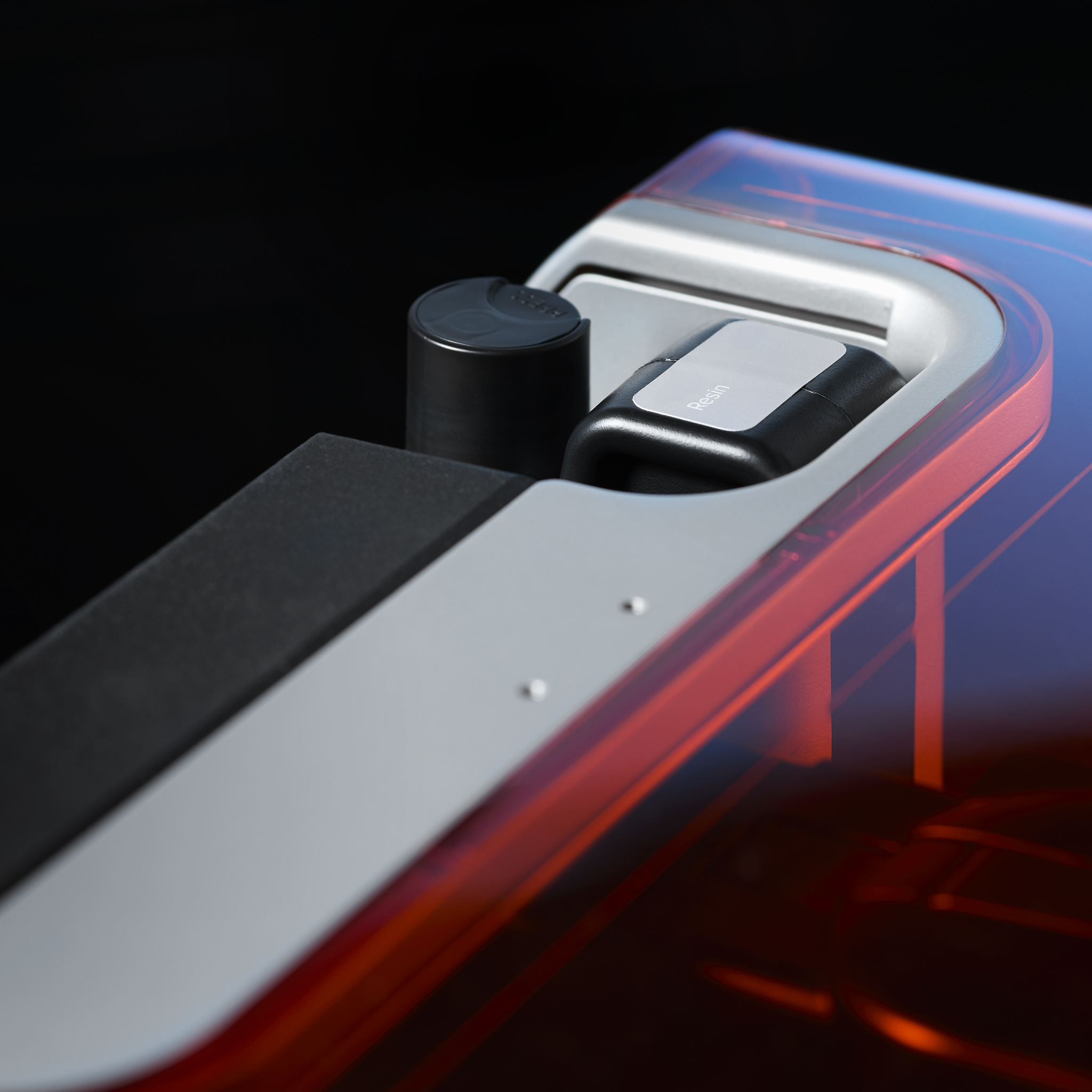

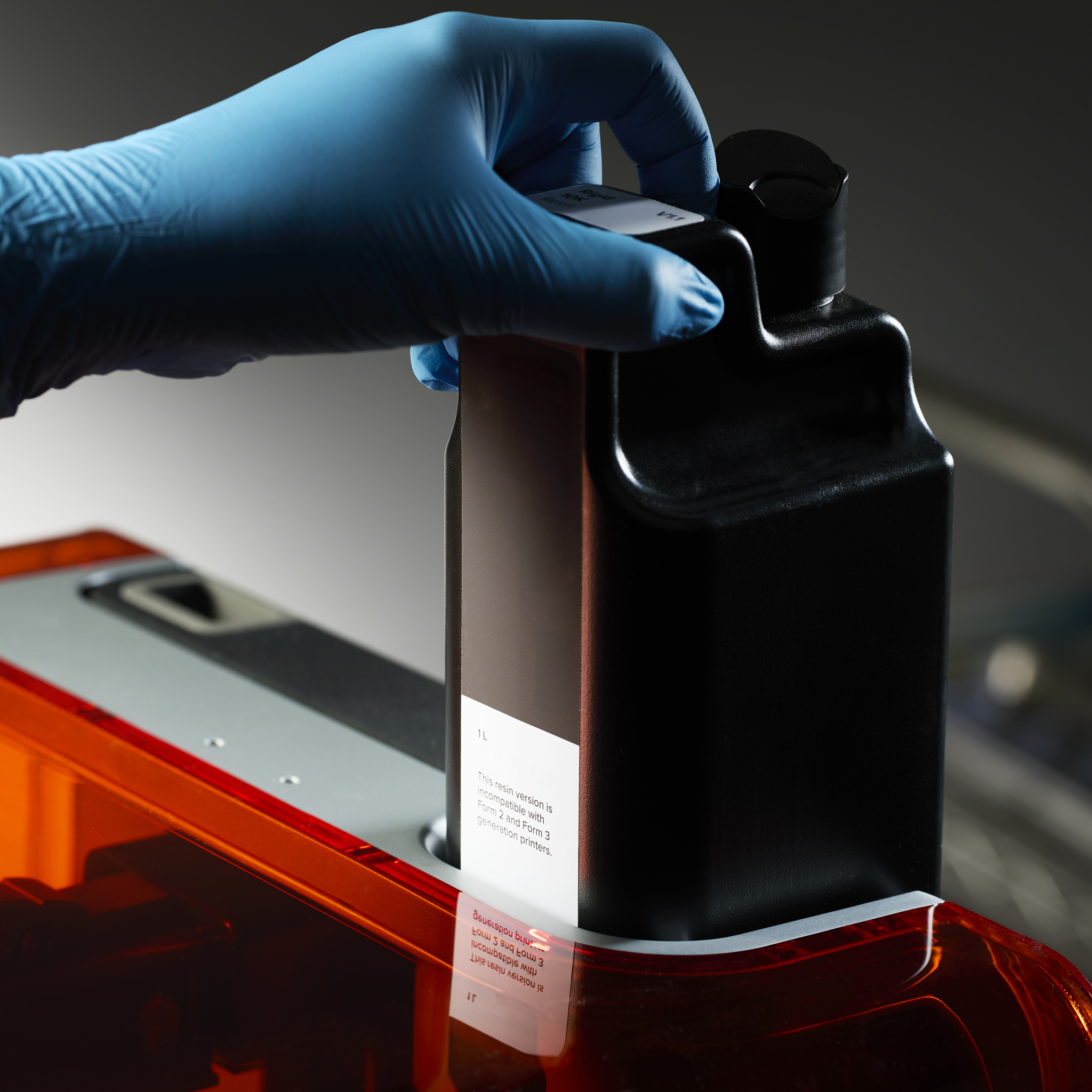

Redesigned Form 4 Resin Cartridge:

  • Faster dispensing
  • Fill an empty tank in 2-8 minutes with most resins
  • Valve system is 5-10x faster to fill than Form 3
  • Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
  • Redesigned cartridge takes up 30% less shelf space
